POM Plastic Sheet: Properties, Processing & Common Applications
POM Sheet Properties at a Glance
NAGOMER supplies POM sheets in both homopolymer (POM-H) and copolymer (POM-C) grades:
Property | POM-H (Homopolymer) | POM-C (Copolymer) |
Density (g/cm³) | 1.42 | 1.41 |
Tensile strength (MPa) | 70 | 62 |
Flexural modulus (GPa) | 2.6 | 2.4 |
Impact strength (kJ/m²) | 8 | 6.5 |
HDT (1.8 MPa, °C) | 110 | 100 |
Continuous service temp (°C) | 100 | 100 |
Water absorption 24h (%) | 0.20 | 0.22 |
Coefficient of friction | 0.35 | 0.40 |
Rockwell hardness | M92 | M88 |
Key Advantages of POM Plastic Sheet
l High crystallinity (75–85%) gives excellent mechanical properties
l Low moisture absorption ensures dimensional stability in humid environments
l Excellent fatigue resistance for cyclic loading applications
l Superior wear and abrasion resistance compared to PA66
l Good electrical insulation properties
l FDA compliant (natural grades) for food contact
l Easy to machine — good chip control, no burr formation
Processing Methods
CNC Machining
POM is one of the most machinable engineering plastics. It produces clean chips, achieves tight tolerances (±0.05mm), and requires no coolant for light cuts. Best practices include:
l Use sharp carbide tools with positive rake angles
l Moderate cutting speeds (100–200 m/min)
l Prevent overheating — POM softens at 165°C
l Allow stress relief after heavy machining (120°C for 2 hours)
Injection Moulding (for POM resin)
POM resin is injection moulded at 190–220°C barrel temperature with mould temperatures of 60–90°C. Mould shrinkage is typically 1.8–2.5%, requiring accurate tool design.
Sheet Extrusion / Compression Moulding
NAGOMER produces POM sheets via compression moulding for thicknesses >5mm, ensuring uniform density and minimal internal stress.
Common Applications by Industry
Automotive
l Fuel system components (sender unit housings, fuel pump impellers)
l Door lock mechanisms, window regulator gears
l Wiper system linkages and bearings
l Interior trim clips and fasteners
Consumer Electronics
l Printer and scanner gears
l Keyboard mechanisms
l Camera lens barrel components
l Wear-resistant sliding rails
Food & Beverage Processing
l Conveyor belt links and guide rails
l Food pump impellers and valves
l Packaging machine components
l Cutting board inserts
Industrial Equipment
l Gear wheels and racks
l Bearing bushes and sliding bearings
l Valve bodies and seals
l Pump housings and impellers
POM Sheet Grades from NAGOMER
Grade | Type | Colour | Key Feature |
NGM-POM-H-S | Homopolymer | Natural/Black | Highest strength |
NGM-POM-C-S | Copolymer | Natural/Black | Best chemical resistance |

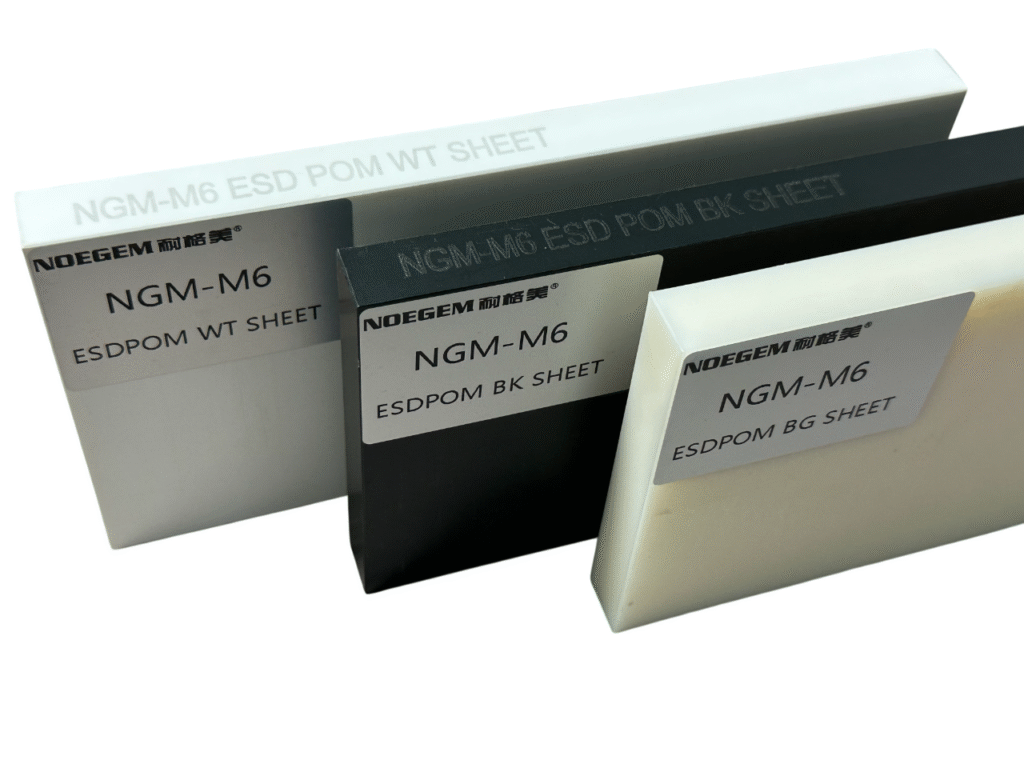

NGM-PESD-S | ESD POM | Black | Static dissipative |
NGM-POM-GF-S | Glass-filled | Natural | Enhanced stiffness |
For comparison with other engineering plastics, see our POM vs PA66 guide. For ESD applications, read our ESD POM vs Standard POM guide.
FAQ
Q1: What is the difference between POM homopolymer and copolymer?
POM homopolymer (POM-H) has higher tensile strength (70 MPa vs 62 MPa) and hardness but lower chemical resistance. POM copolymer (POM-C) has better resistance to hot water, alkalis, and hydrocarbons, making it more suitable for chemical processing applications.
Q2: Is POM sheet food safe?
Yes, natural (unpigmented) POM homopolymer and copolymer grades are FDA compliant under 21 CFR §177.2470 and §177.2480 respectively. They are suitable for repeated food contact including hot water and mild cleaning chemicals.
Q3: What thicknesses are available for POM sheets?
NAGOMER supplies POM sheets from 2mm to 100mm thick. Standard sheet sizes are 1000×2000mm and 1220×2440mm. Custom dimensions and cut-to-size pieces are available.
Q4: How does POM compare to PA66?
POM has better dimensional stability, fatigue resistance, and lower moisture absorption than PA66. PA66 has higher impact strength and better temperature resistance. See our POM vs PA66 comparison guide for detailed analysis.
Looking for quality POM plastic sheets? Contact NAGOMER for a free quote, or browse our POM sheets and ESD POM products.
